Product Overview

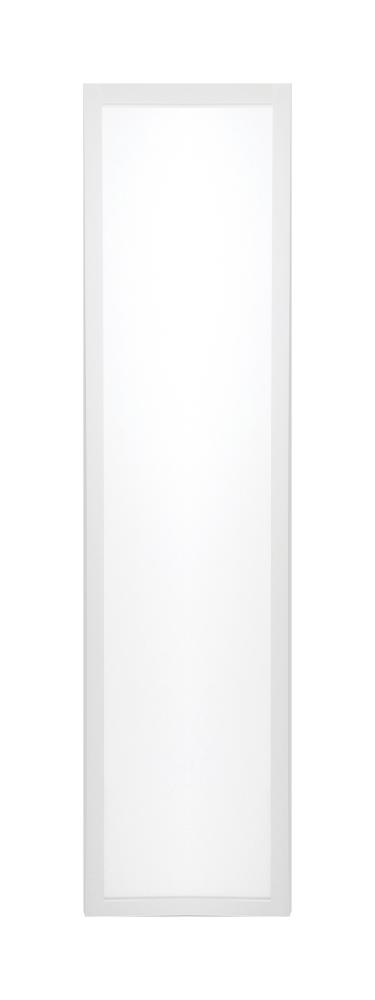

LED Backlit Flat Panel with Emergency Backup; 40 Watt; 1 ft. x 4 ft.; CCT Selectable ; 100-347 Volt

Standard Information

Category:

Specialty Items

Subcategory:

Lighting Accessories

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Flat Panel

Sub Category:

Backlit Emergency

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

13.39

Each Length:

49.02

Each Width:

2.56

Length:

47.72

Lumens:

4400L-4600L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Wire Length:

3.54

Air Tight:

No

Amps:

0.400-0.115A

ANSI Base:

Integrated

BAA Compliant:

No

Battery Chemistry:

Lithium-ion (Li-ion)

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Standard

DLC Primary Use:

1x4 Luminaires for Ambient Lighting of Interior Commercial Spaces

Each Cube:

0.9724

Each Quantity:

1

Efficacy:

110.00/112.50/115.00 LPW

FCC Compliant:

Yes

Feature 1:

ColorQuick Technology - CCT Selectable 35K/40K/50K

Feature 2:

Length: 47.72 inches, Width: 11.84 inches, Height: 1.50 inches

Feature 3:

0-10 volt dimming

Feature 4:

Damp location rated for indoor use

Feature 5:

50,000 average rated hours of use

Feature 6:

White Finish

Feature 7:

Universal input voltage - 100V-347V

Feature 8:

Dimmable

Feature 9:

5-year limited warranty

Finish Family:

White

Fixture shape:

Rectangle

Flicker Free:

Yes

Has Emergency Battery:

Yes

IC Rated:

Yes

Incandescent Equivalent:

200W

Indoor Outdoor:

Indoor

IOT Enabled:

No

IP Rating:

IP20

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO's 65-587 LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies al

Material:

Aluminum / Steel

Mounting Procedure:

Ceiling

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Panel Size:

1x4

Photocell:

No Photocell

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

13

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED-backlit panel with ColorQuick technology is a versatile lighting fixture. Through advanced manufacturing, even light distribution is achieved at an even greater cost savings. Satco's ColorQuick and PowerQuick technologies allow for

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

1X4 LED EM BACKLIT FLAT PANEL

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

21%

Wattage Selectable:

No

Weight Lb.:

4.98

Wire Gauge:

14

Wire Temp Rating:

80C (176F)

Manufacturer Info

Manufactured By:

Nuvo
