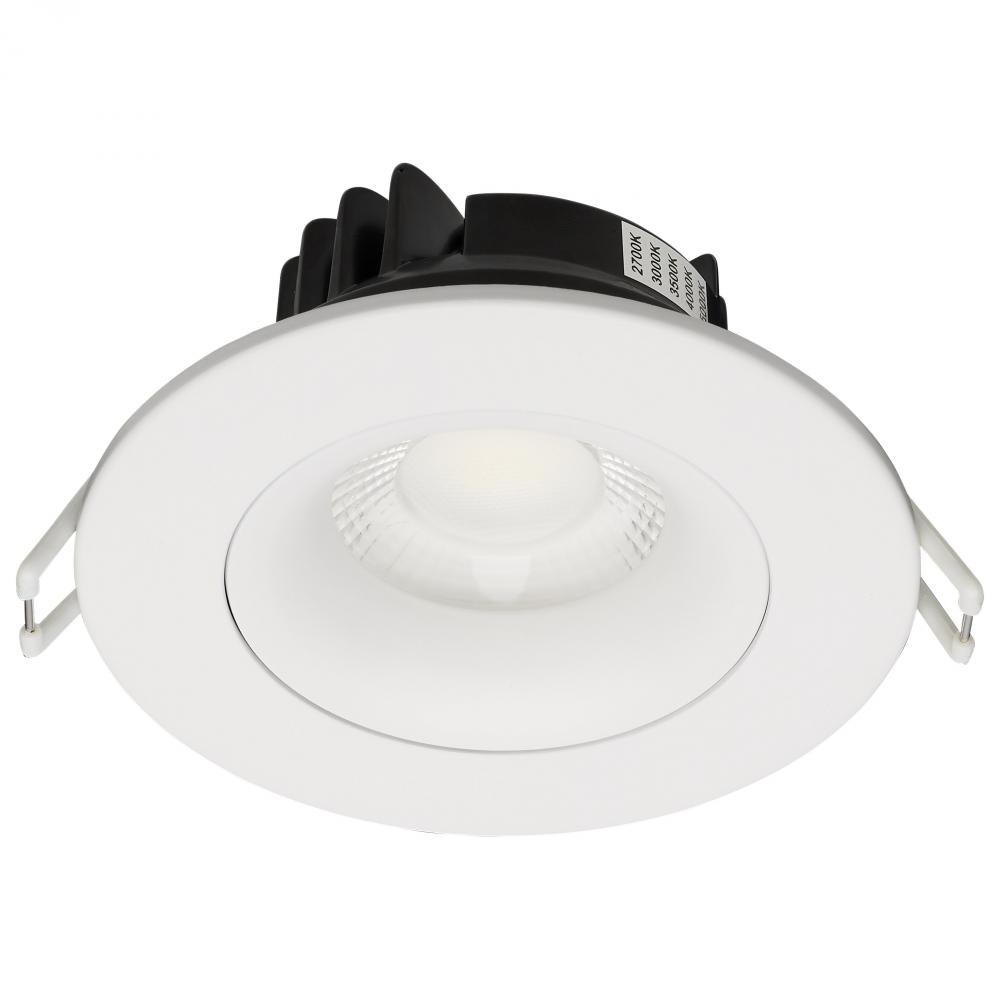

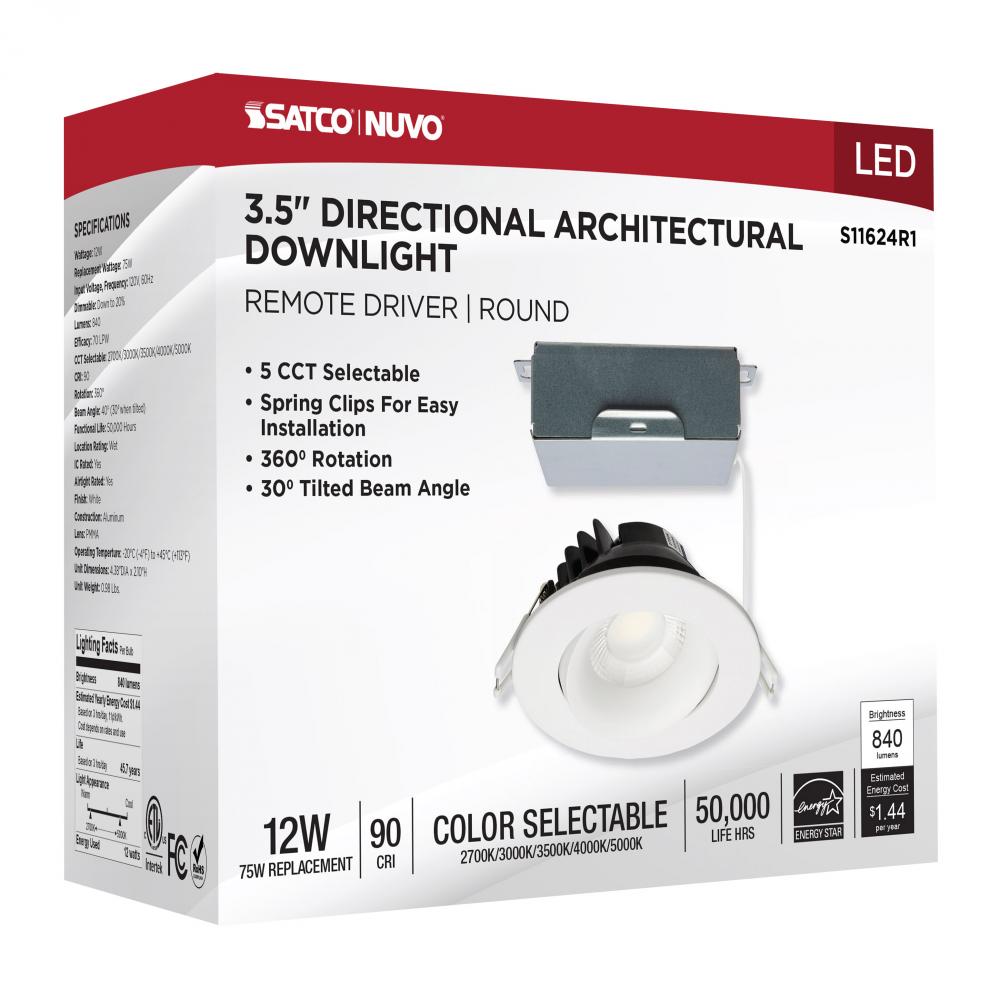

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Round; Remote Driver; White

Part Number: S11624R1 / Vendor ID #: 4799

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Round; Remote Driver; White

by Satco Products Inc.

Call for Price

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock. Please contact showroom to confirm availability. Non-stock item may require restocking fee.

Dimensions

Height: 2.10"

Width: 4.38"

Product Overview

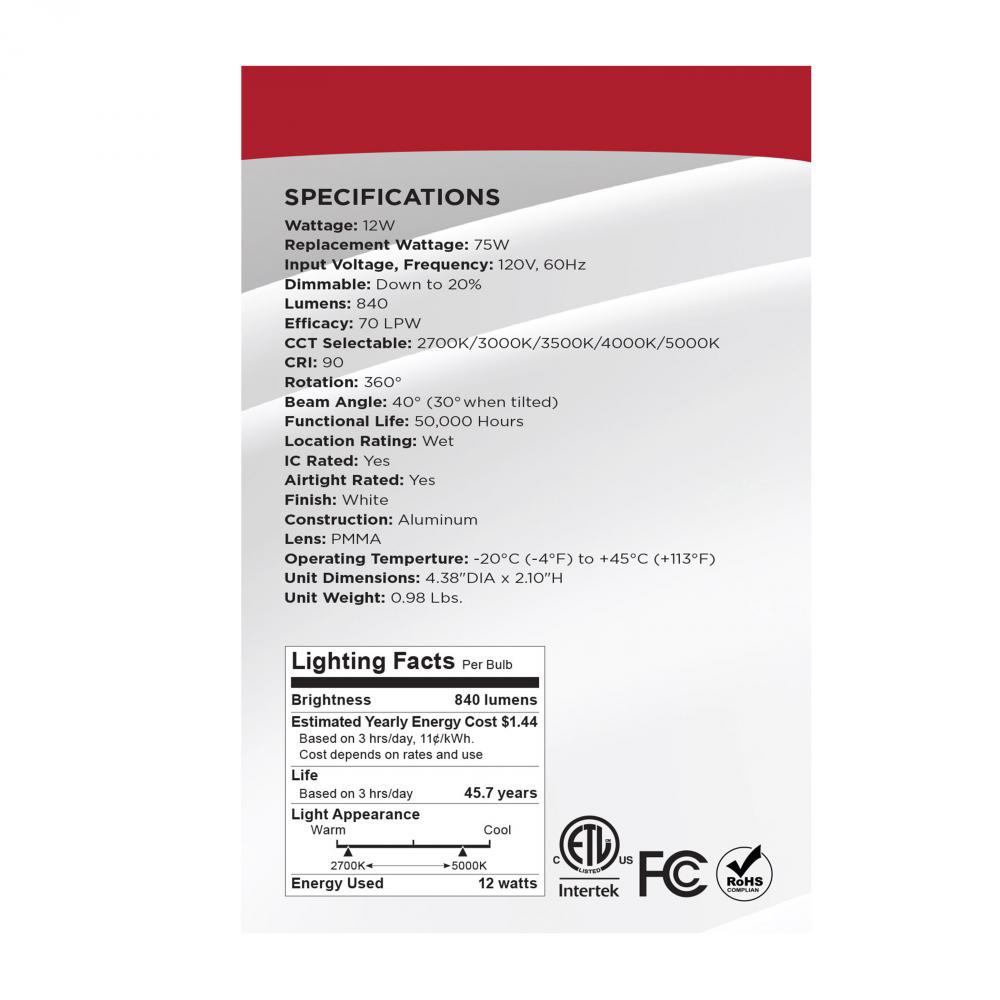

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Round; Remote Driver; White Finish; 840 Lumens; 120 Volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Additional Info:

360 Degree Rotation; 30 Degree Tilt

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Diameter:

4.38

Dimmable:

Yes-Dimmable

Each Height:

5.31

Each Length:

5.31

Each Width:

3.74

Lumens:

840L

Tariff Code:

9405.11.8010

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

3.563 in. Cutout

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.061

Each Quantity:

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

90 CRI

Feature 2:

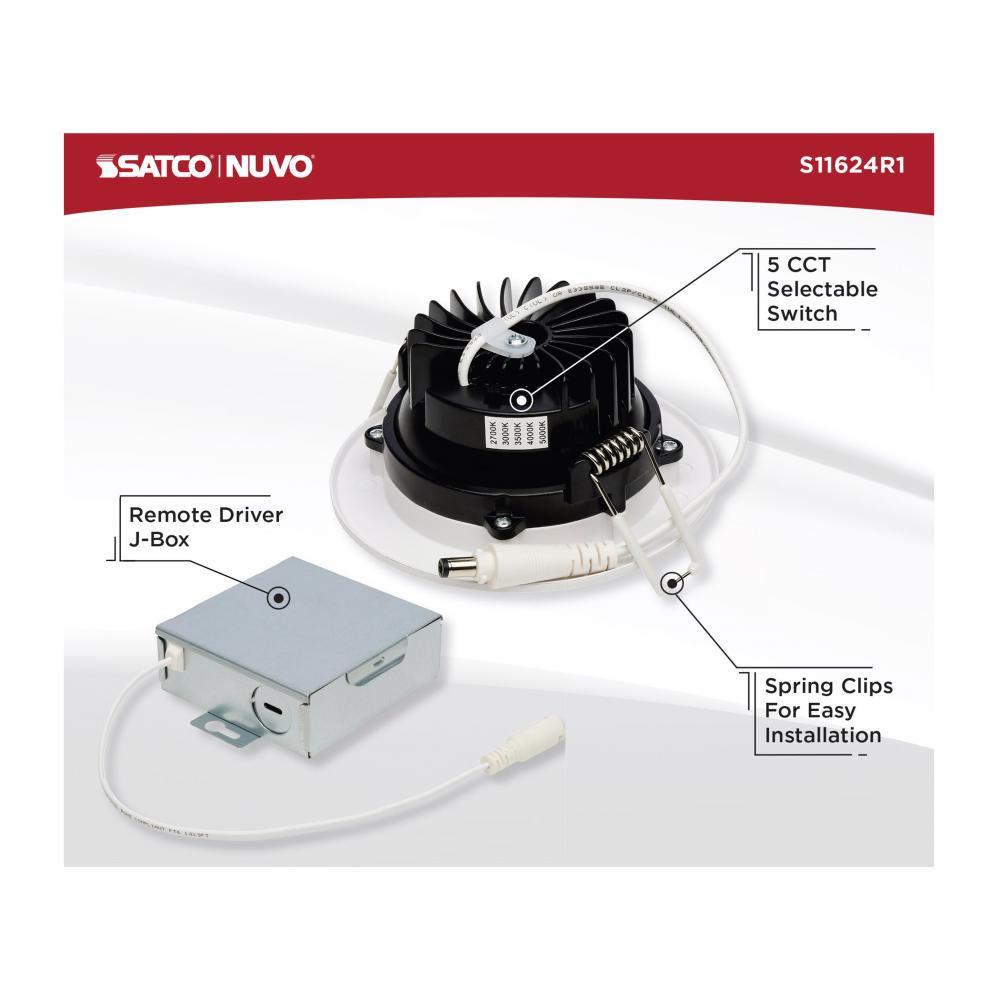

5 CCT Selectable

Feature 3:

Dimmable

Feature 4:

Wet Location Rated

Feature 5:

Title 24 Compliant

Feature 6:

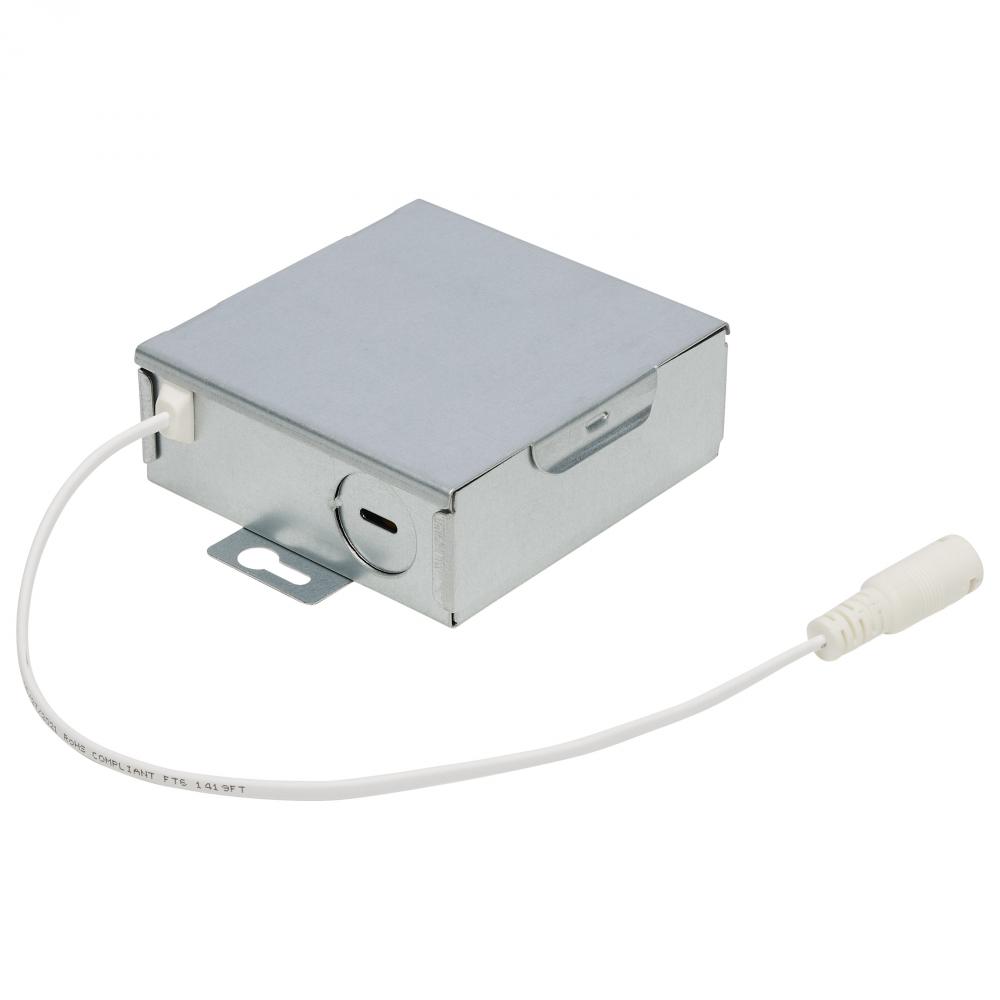

Remote J-Box

Feature 7:

360-Degree Rotation, 30-Degree Tilt

Feature 8:

IC Rated

Feature 9:

Aluminum Construction with PMMA Lens

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

JA8 Compliant:

Yes

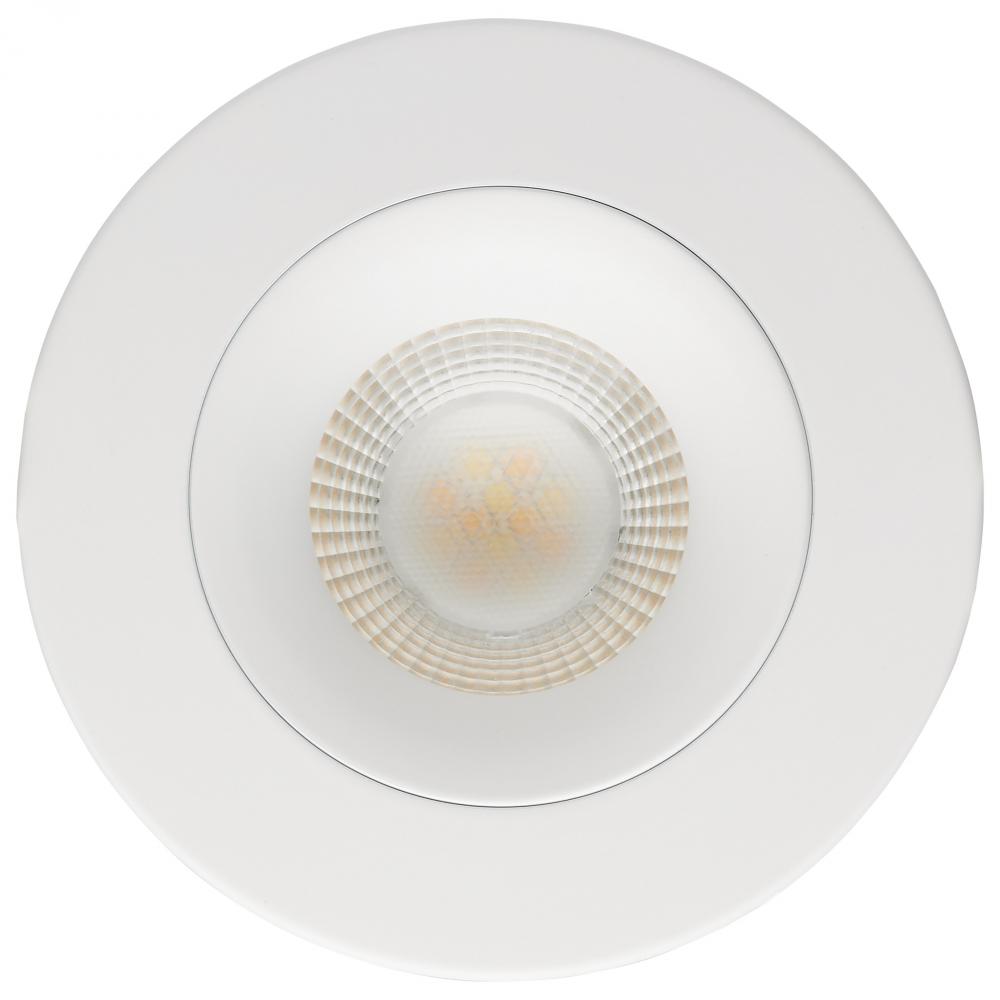

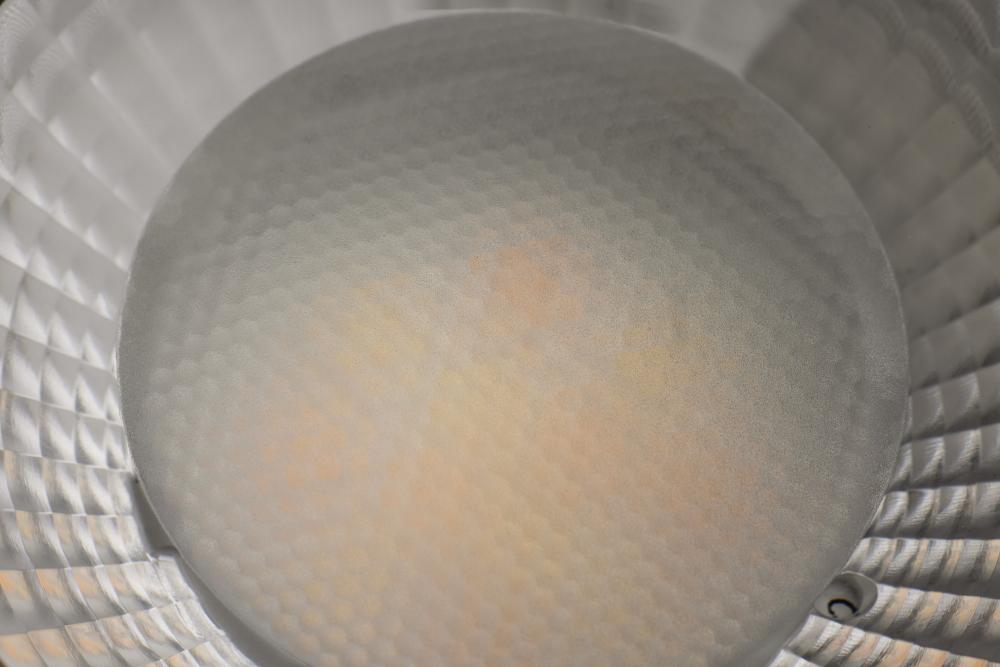

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO's S11624R1 LED Directional Architectural Downlight is made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. In

Material:

Aluminum

Mounting Procedure:

Recessed Direct Wire

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Directional Architectural Downlights are made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Install a

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12W/DW/GBL/3.5/CCT/RND/RD/WH

Temperature (CCT):

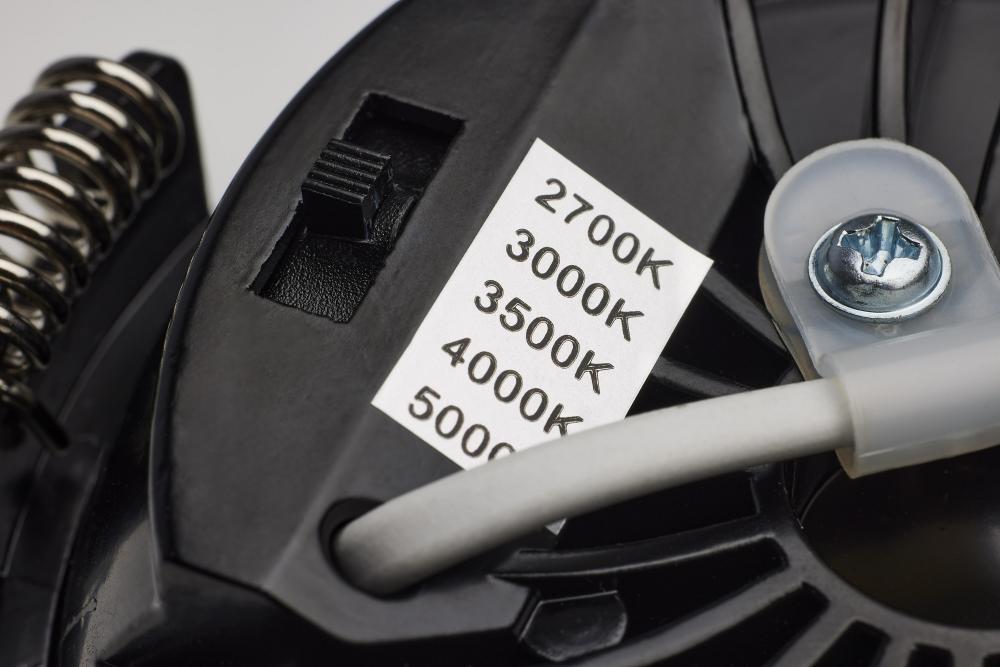

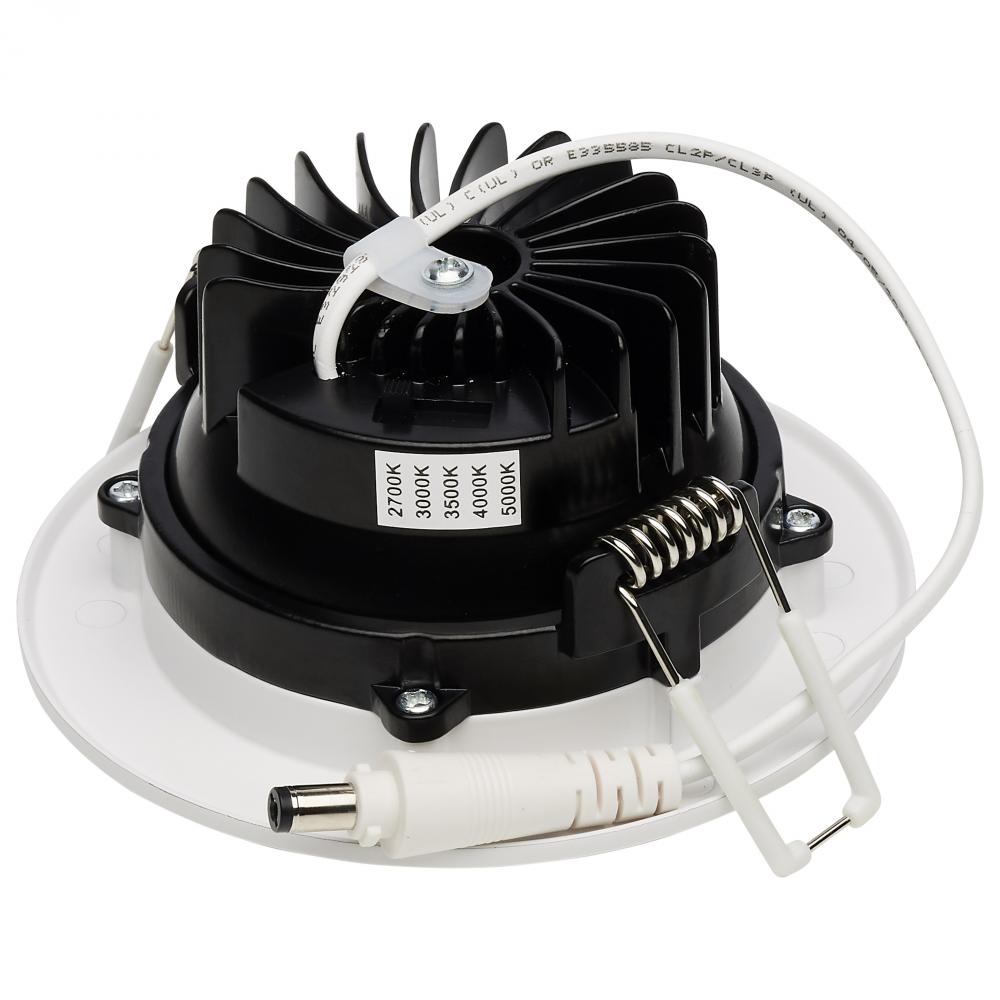

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Color:

White

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

0.98

Manufacturer Info

Manufactured By:

Satco Products Inc.
